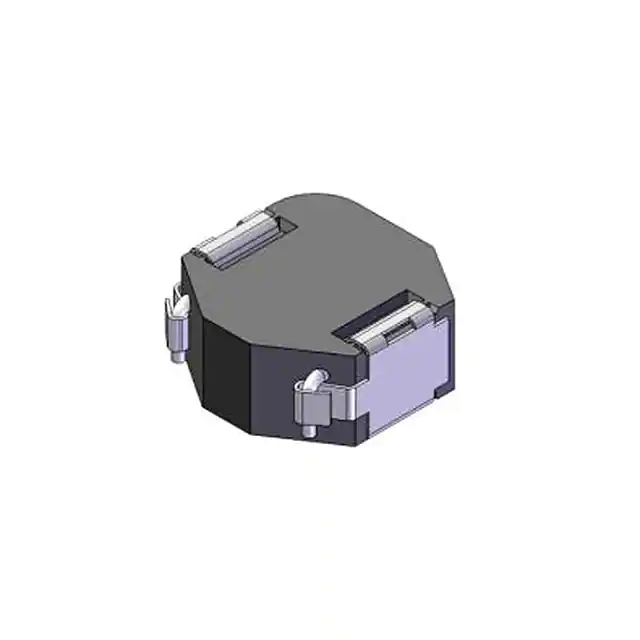

| Part Number | DFEG12060D-3R3M=P3 | DFEH12060D-3R3M=P3 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Last Time Buy | Last Time Buy |
| Type | - | - |
| Material - Core | Iron Powder | Iron Powder |
| Inductance | 3.3 µH | 3.3 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 13 A | 13 A |
| Current - Saturation (Isat) | 18A | 18A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 6.3mOhm Max | 6.3mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.512" L x 0.496" W (13.00mm x 12.60mm) | 0.512" L x 0.496" W (13.00mm x 12.60mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) |
