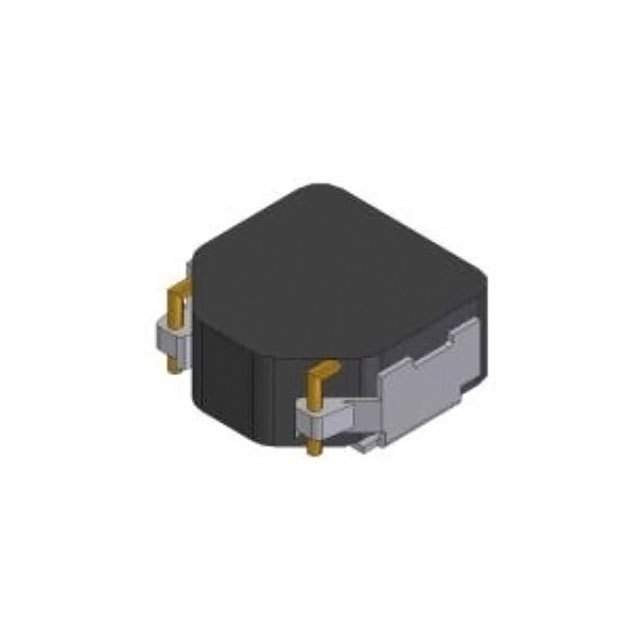

| Part Number | DFEG10040D-3R3M=P3 | DFEH10040D-3R3M=P3 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Last Time Buy | Last Time Buy |
| Type | - | - |
| Material - Core | Iron Powder | Iron Powder |
| Inductance | 3.3 µH | 3.3 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 10 A | 10 A |
| Current - Saturation (Isat) | 13A | 13A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 12mOhm Max | 12mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.429" L x 0.394" W (10.90mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) |
