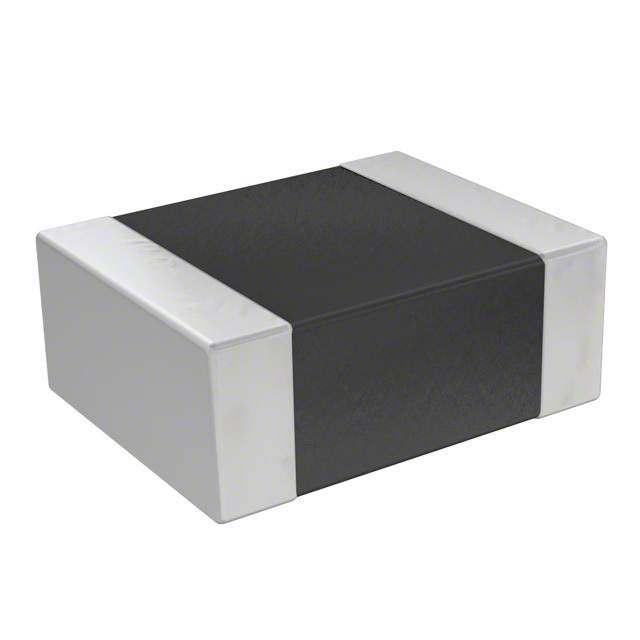

| Part Number | DFE252012F-R68M=P2 | DFE252012P-R68M=P2 | DFE252010F-R68M=P2 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | - | Drum Core, Wirewound | - |
| Material - Core | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 680 nH | 680 nH | 680 nH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.9 A | 3.5 A | 3.5 A |
| Current - Saturation (Isat) | 6A | 4.8A | 5.5A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 31mOhm Max | 37mOhm Max | 37mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.039" (1.00mm) |
