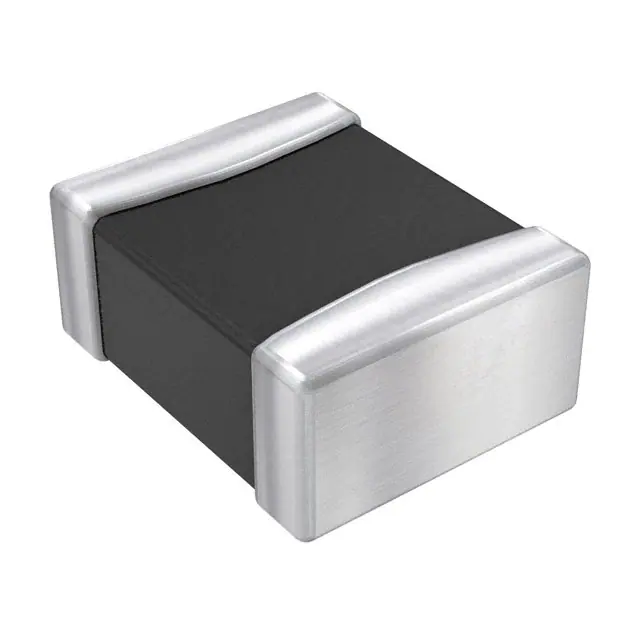

| Part Number | DFE252010P-R47M=P2 | DFE252012P-R47M=P2 | DFE252010F-R47M=P2 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | - |
| Material - Core | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 470 nH | 470 nH | 470 nH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 5 A | 4 A | 4.4 A |
| Current - Saturation (Isat) | - | - | 6.6A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 35mOhm Max | 21mOhm Max | 27mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) | 1008 (2520 Metric) | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.047" (1.20mm) | 0.039" (1.00mm) |
