Please send RFQ , we will respond immediately.

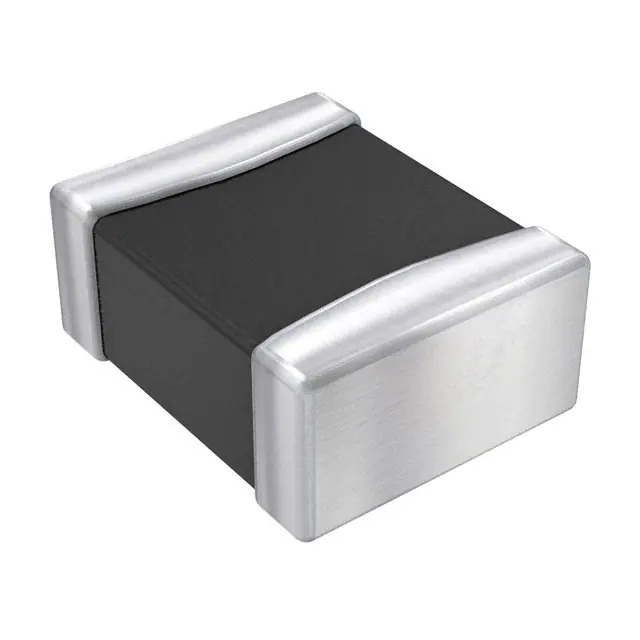

| Part Number | DFE201610P-R24M=P2 | DFE201612P-R24M=P2 | DFE201610E-R24M=P2 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron Powder | Metal | Metal |
| Inductance | 240 nH | 240 nH | 240 nH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 5.4 A | 6.5 A | 4.7 A |
| Current - Saturation (Isat) | - | - | 6.3A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 26mOhm Max | 23mOhm Max | 20mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
