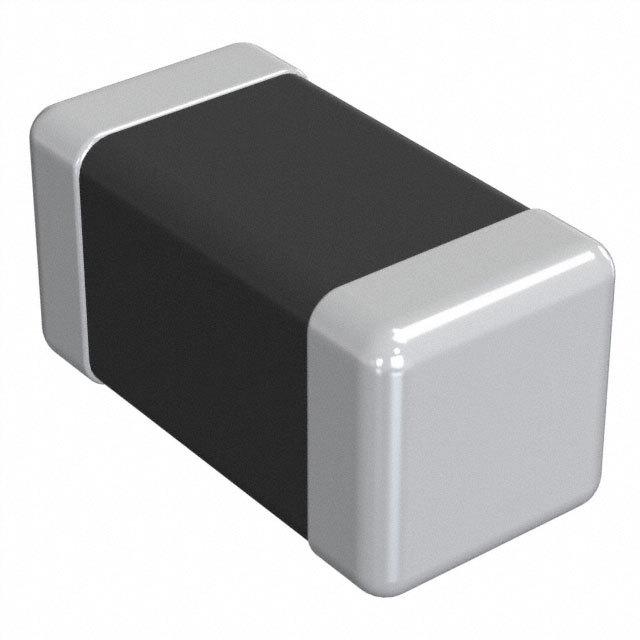

| Part Number | DFE18SANR24ME0L | DFE18SANR24MG0L |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal | Metal |
| Inductance | 240 nH | 240 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 3.2 A | 3.5 A |
| Current - Saturation (Isat) | 4.2A | 4.9A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 36mOhm Max | 30mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.039" (1.00mm) |
