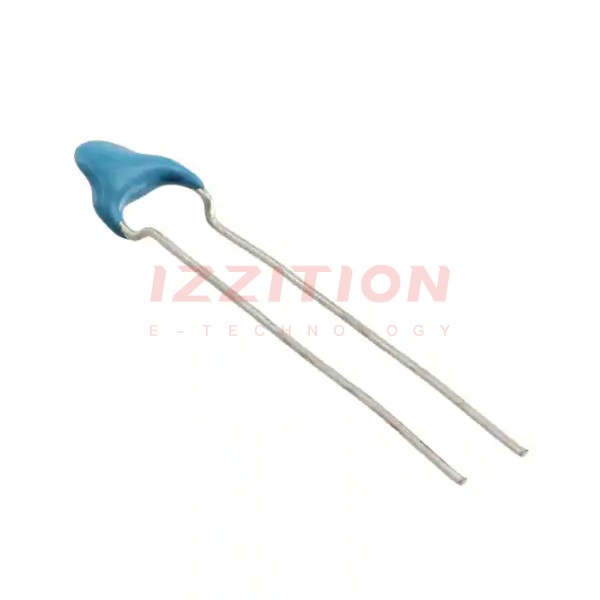

| Part Number | DESD32H152KJ2B | DESD32H151KJ2B | DESD32H152KA2B |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 1500 pF | 150 pF | 1500 pF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 500V | 500V | 500V |
| Temperature Coefficient | D | D | D |
| Operating Temperature | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C |
| Features | High Voltage, Low Dissipation Factor | High Voltage, Low Dissipation Factor | High Voltage, Low Dissipation Factor |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.354" Dia (9.00mm) | 0.236" Dia (6.00mm) | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.354" (9.00mm) | 0.472" (12.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads |
