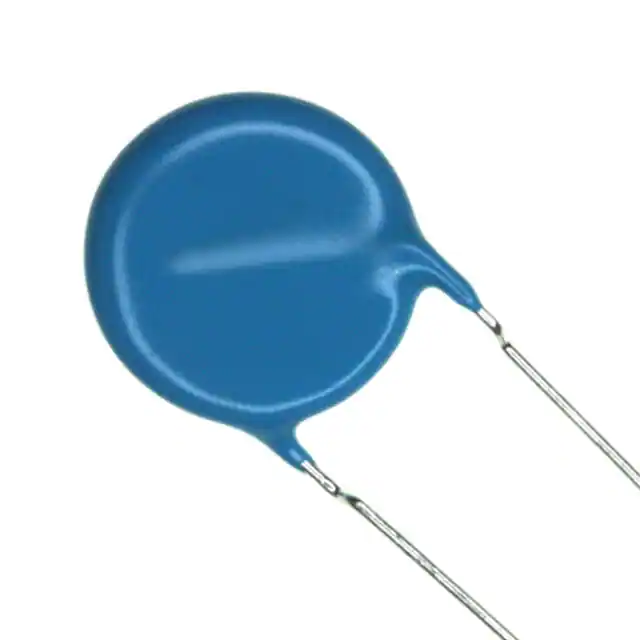

| Part Number | DEHR33F221KC3B | DEHR33F271KC3B | DEHR33F221KD3B | DEHR33D221KC3B |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 220 pF | 270 pF | 220 pF | 220 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 3150V (3.15kV) | 3150V (3.15kV) | 3150V (3.15kV) | 2000V (2kV) |
| Temperature Coefficient | R | R | R | R |
| Operating Temperature | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C |
| Features | High Voltage, Low Dissipation Factor | High Voltage, Low Dissipation Factor | High Voltage, Low Dissipation Factor | High Voltage, Low Dissipation Factor |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Lead Style | Straight | Straight | Straight | Straight |
