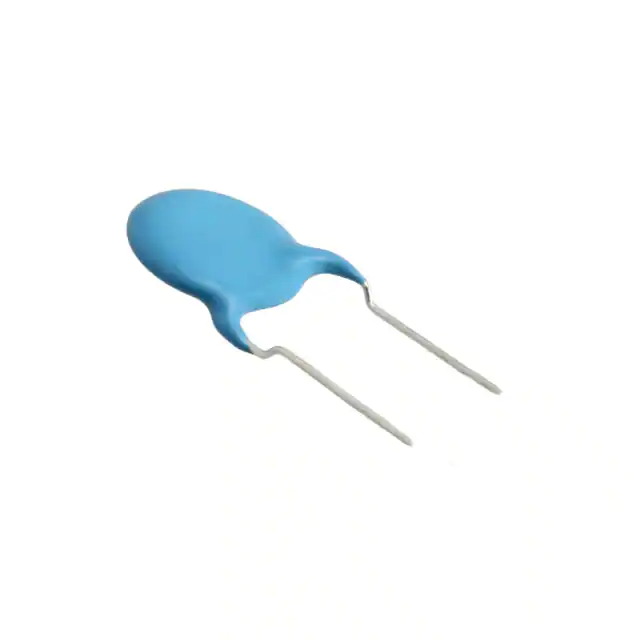

| Part Number | DEHR32E332KB2B | DEHR32E331KB2B | DEHR32E332KA2B |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 3300 pF | 330 pF | 3300 pF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 250V | 250V | 250V |
| Temperature Coefficient | R | R | R |
| Operating Temperature | -25°C ~ 125°C | -25°C ~ 125°C | -25°C ~ 125°C |
| Features | High Voltage, Low Dissipation Factor | High Voltage, Low Dissipation Factor | High Voltage, Low Dissipation Factor |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.354" Dia (9.00mm) | 0.236" Dia (6.00mm) | 0.354" Dia (9.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.354" (9.00mm) | 0.472" (12.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads |
