Please send RFQ , we will respond immediately.

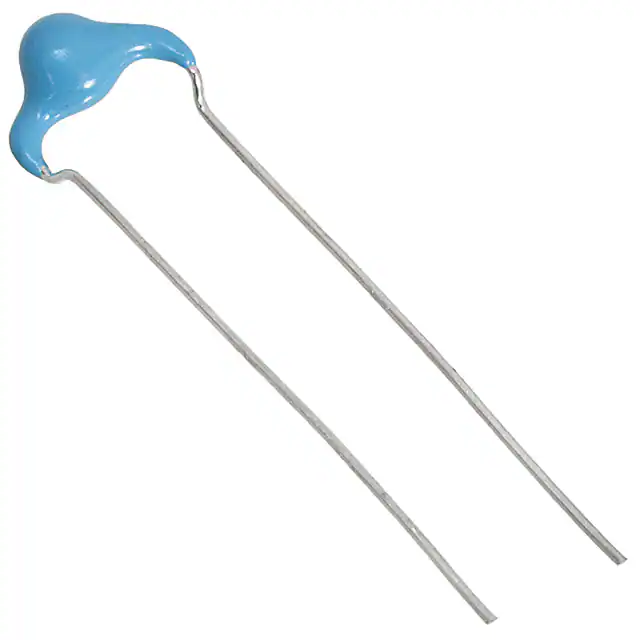

| Part Number | DEF2CLH080DJ3B | DEF2CLH090DJ3B | DEF2CLH050DJ3B | DEF2CLH060DJ3B | DEF2CLH070DJ3B | DEF2CLH080DA3B |
|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 8 pF | 9 pF | 5 pF | 6 pF | 7 pF | 8 pF |
| Tolerance | ±0.5pF | ±0.5pF | ±0.5pF | ±0.5pF | ±0.5pF | ±0.5pF |
| Voltage - Rated | 6300V (6.3kV) | 6300V (6.3kV) | 6300V (6.3kV) | 6300V (6.3kV) | 6300V (6.3kV) | 6300V (6.3kV) |
| Temperature Coefficient | C0H | C0H | C0H | C0H | C0H | C0H |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Features | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) |
| Thickness (Max) | - | - | - | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Straight |
