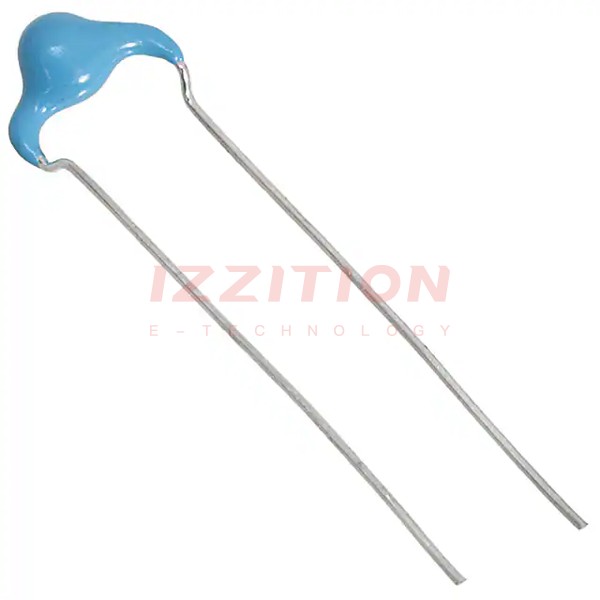

| Part Number | DEF1XLH270JN3A | DEF1XLH470JN3A | DEF1XLH220JN3A |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 27 pF | 47 pF | 22 pF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage - Rated | 6300V (6.3kV) | 6300V (6.3kV) | 6300V (6.3kV) |
| Temperature Coefficient | SL | SL | SL |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Features | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.354" Dia (9.00mm) | 0.276" Dia (7.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.512" (13.00mm) | 0.433" (11.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads |
