Please send RFQ , we will respond immediately.

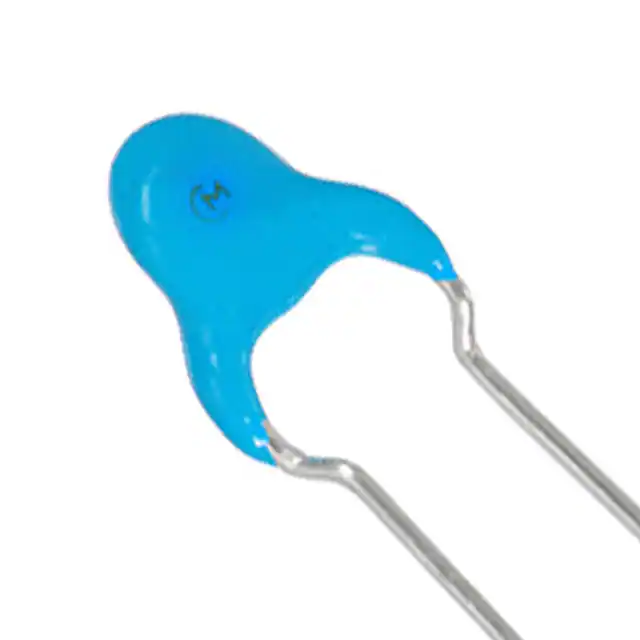

| Part Number | DEBB33D102KA2B | DEBB33D152KA2B | DEBB33D102KB2B |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 pF | 1500 pF | 1000 pF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 2000V (2kV) | 2000V (2kV) | 2000V (2kV) |
| Temperature Coefficient | B | B | B |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Features | High Voltage | High Voltage | High Voltage |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.354" Dia (9.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.472" (12.00mm) | 0.433" (11.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads |
