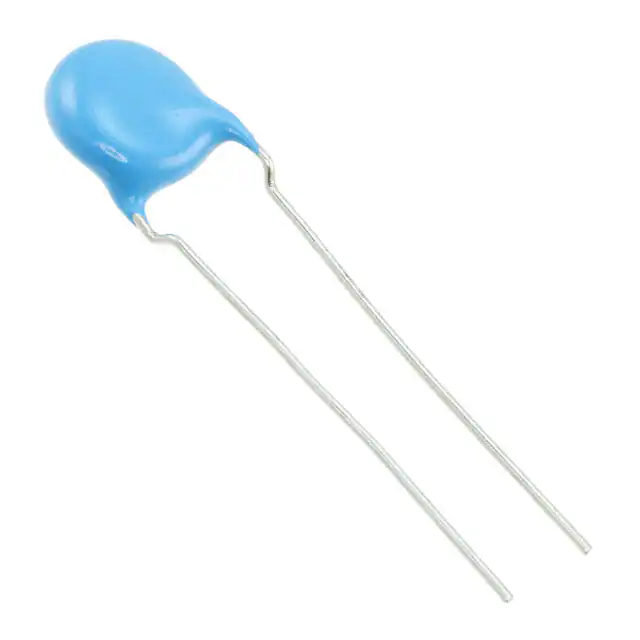

| Part Number | DE6E3KJ102MB3B | DE6E3KJ152MB3B | DE6E3KJ102MA3B |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Capacitance | 1000 pF | 1500 pF | 1000 pF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 300VAC | 300VAC | 300VAC |
| Temperature Coefficient | E | E | E |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Features | High Voltage | High Voltage | High Voltage |
| Ratings | AEC-Q200, X1, Y2 | AEC-Q200, X1, Y2 | AEC-Q200, X1, Y2 |
| Applications | Safety, Automotive | Safety, Automotive | Safety, Automotive |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.276" Dia (7.00mm) | 0.315" Dia (8.00mm) | 0.276" Dia (7.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.433" (11.00mm) | 0.394" (10.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads |
