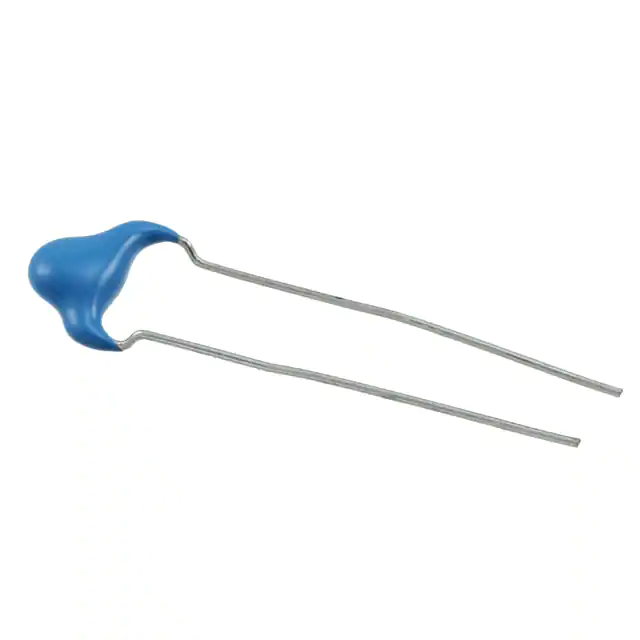

| Part Number | DE2B3KY221KB3BU02F | DE2B3KY221KJ3BU02F | DE2B3KY221KA3BU02F | DE2B3KY221KB3BM02F |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Not For New Designs | Obsolete | Obsolete |
| Capacitance | 220 pF | - | 220 pF | 220 pF |
| Tolerance | ±10% | - | ±10% | ±10% |
| Voltage - Rated | 300VAC | - | 300VAC | 250VAC |
| Temperature Coefficient | B | - | B | B |
| Operating Temperature | -40°C ~ 125°C | - | -40°C ~ 125°C | -40°C ~ 125°C |
| Features | - | - | - | - |
| Ratings | X1, Y2 | - | X1, Y2 | X1, Y2 |
| Applications | Safety | - | Safety | Safety |
| Failure Rate | - | - | - | - |
| Mounting Type | Through Hole | - | Through Hole | Through Hole |
| Package / Case | Radial, Disc | - | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.276" Dia (7.00mm) | - | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | - | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | - | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Lead Style | Formed Leads | - | Formed Leads | Formed Leads |
