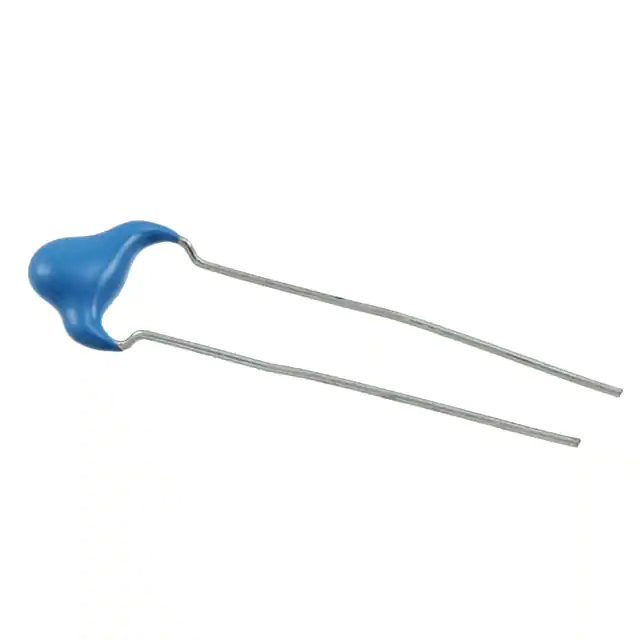

| Part Number | DE2B3KY101KN3AM02F | DE2B3KY101KN3AU02F | DE2B3KY151KN3AM02F |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 100 pF | 100 pF | 150 pF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 250VAC | 300VAC | 250VAC |
| Temperature Coefficient | B | B | B |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Features | - | - | - |
| Ratings | X1, Y2 | X1, Y2 | X1, Y2 |
| Applications | Safety | Safety | Safety |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) | 0.276" Dia (7.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads |
