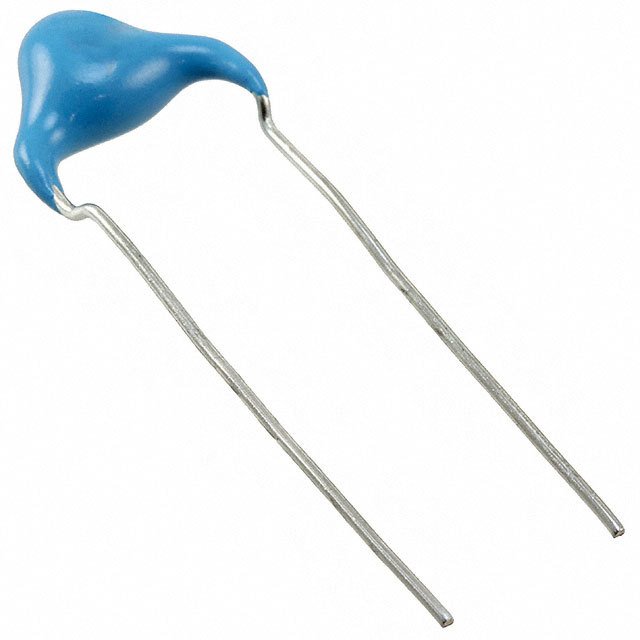

| Part Number | DE1B3KX221KA4BP01F | DE1B3KX221KB4BP01F | DE1B3KX221KJ4BP01F | DE1B3KX221KA4BN01F |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 220 pF | 220 pF | - | 220 pF |
| Tolerance | ±10% | ±10% | - | ±10% |
| Voltage - Rated | 250VAC | 250VAC | - | 250VAC |
| Temperature Coefficient | B | B | - | B |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | - | -40°C ~ 125°C |
| Features | Flame Retardant | Flame Retardant | - | Flame Retardant |
| Ratings | X1, Y1 | X1, Y1 | - | X1, Y1 |
| Applications | Safety | Safety | - | Safety |
| Failure Rate | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | - | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | - | Radial, Disc |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | - | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.433" (11.00mm) | - | 0.433" (11.00mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | - | 0.394" (10.00mm) |
| Lead Style | Straight | Straight | - | Straight |
