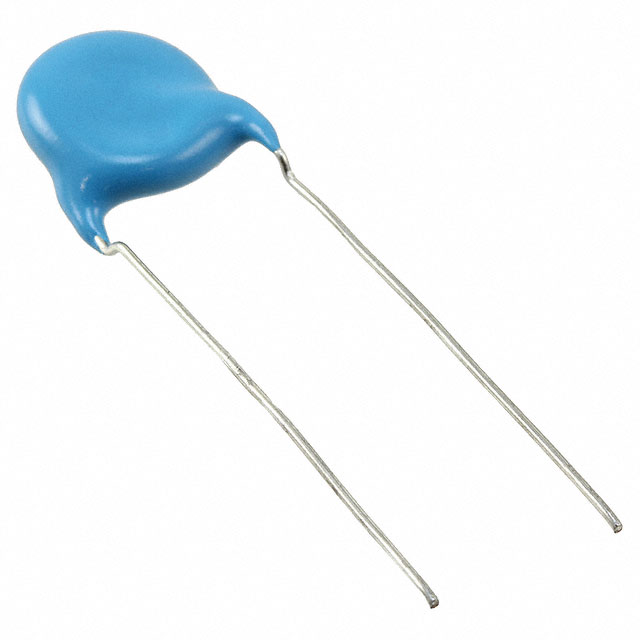

| Part Number | DE11XRB150KA4BR01F | DE11XRB150KJ4BR01F | DE11XRB100KA4BR01F |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Capacitance | 15 pF | 15 pF | 10 pF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 500V | 500V | 500V |
| Temperature Coefficient | SL | SL | SL |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Features | - | - | - |
| Ratings | X1, Y1 | X1, Y1 | X1, Y1 |
| Applications | Safety | Safety | Safety |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Disc | Radial, Disc | Radial, Disc |
| Size / Dimension | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) | 0.354" (9.00mm) | 0.433" (11.00mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Lead Style | Straight | Straight | Straight |
