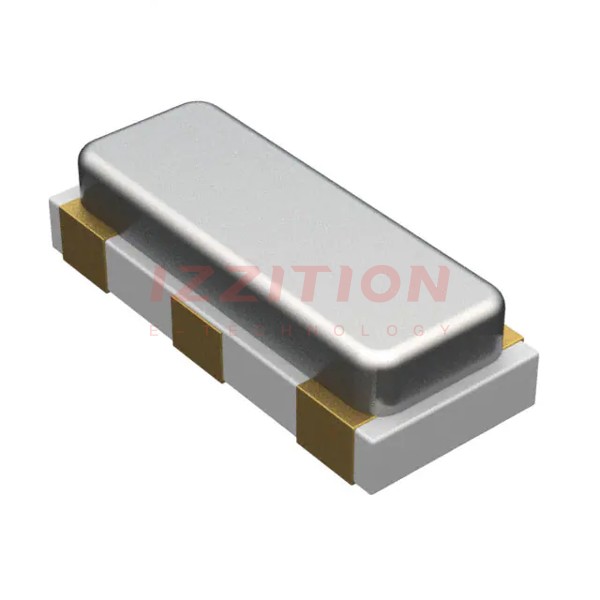

| Part Number | CSTNE16M0V51Z000R0 | CSTNE16M0V53Z000R0 | CSTNE16M0V510000R0 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Ceramic | Ceramic | Ceramic |
| Frequency | 16 MHz | 16 MHz | 16 MHz |
| Frequency Stability | ±0.3% | ±0.3% | ±0.3% |
| Frequency Tolerance | ±0.5% | ±0.5% | ±0.5% |
| Features | Built in Capacitor | Built in Capacitor | Built in Capacitor |
| Capacitance | 5 pF | 15 pF | 5 pF |
| Impedance | 40 Ohms | 40 Ohms | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard |
| Size / Dimension | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) |
| Height | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.032" (0.80mm) |
