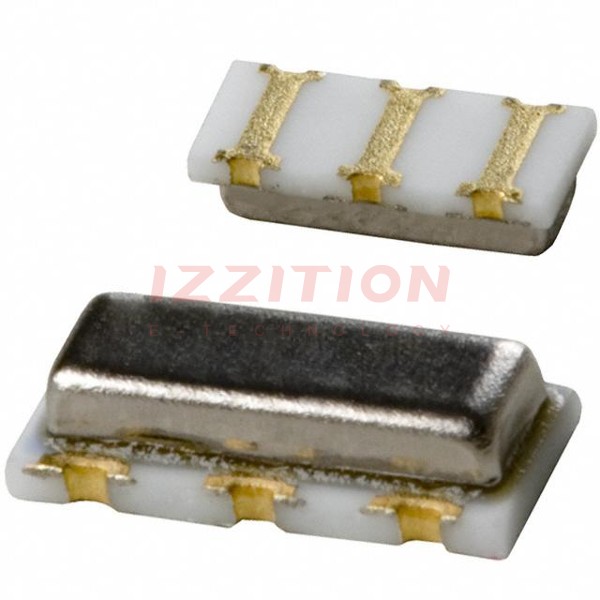

| Part Number | CSTNE12M0G55Z000R0 | CSTNE12M5G55Z000R0 | CSTNE10M0G55Z000R0 | CSTNE12M0G52Z000R0 | CSTNE12M0G550000R0 | CSTNE12M0G55A000R0 |
|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Frequency | 12 MHz | 12.5 MHz | 10 MHz | 12 MHz | 12 MHz | 12 MHz |
| Frequency Stability | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% |
| Frequency Tolerance | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Features | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor |
| Capacitance | 33 pF | 33 pF | 33 pF | 10 pF | 33 pF | 33 pF |
| Impedance | 30 Ohms | - | 40 Ohms | 30 Ohms | 30 Ohms | 30 Ohms |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard |
| Size / Dimension | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) |
| Height | 0.032" (0.80mm) | 0.031" (0.80mm) | 0.032" (0.80mm) | 0.031" (0.80mm) | 0.032" (0.80mm) | 0.032" (0.80mm) |
