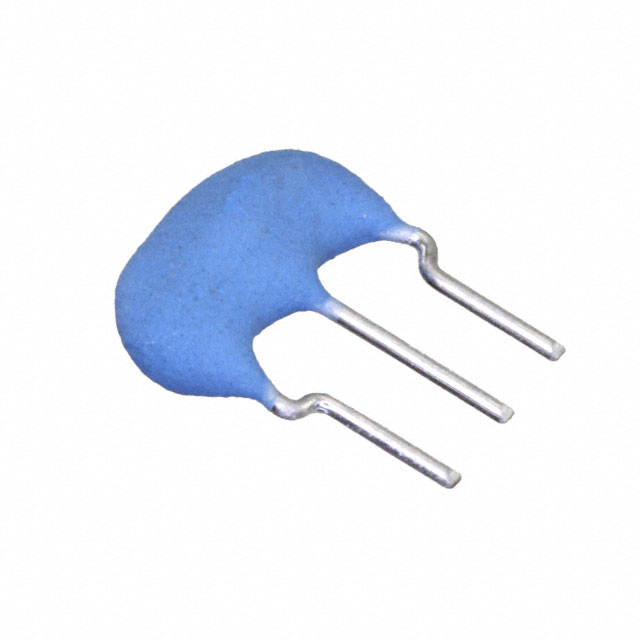

| Part Number | CSTLS8M00G56Z-A0 | CSTLS8M00G56Z-B0 | CSTLS4M00G56Z-A0 | CSTLS8M00G53Z-A0 | CSTLS8M00G56-A0 |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Type | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Frequency | 8 MHz | 8 MHz | 4 MHz | 8 MHz | 8 MHz |
| Frequency Stability | -0.4, +0.2% | -0.6, +0.2% | -0.4, +0.2% | ±0.2% | -0.4, +0.2% |
| Frequency Tolerance | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Features | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor |
| Capacitance | 47 pF | 47 pF | 47 pF | 15 pF | 47 pF |
| Impedance | 25 Ohms | - | 30 Ohms | 25 Ohms | 25 Ohms |
| Operating Temperature | -20°C ~ 80°C | -40°C ~ 125°C | -20°C ~ 80°C | -40°C ~ 125°C | -20°C ~ 80°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch |
| Size / Dimension | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.315" L x 0.118" W (8.00mm x 3.00mm) |
| Height | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
