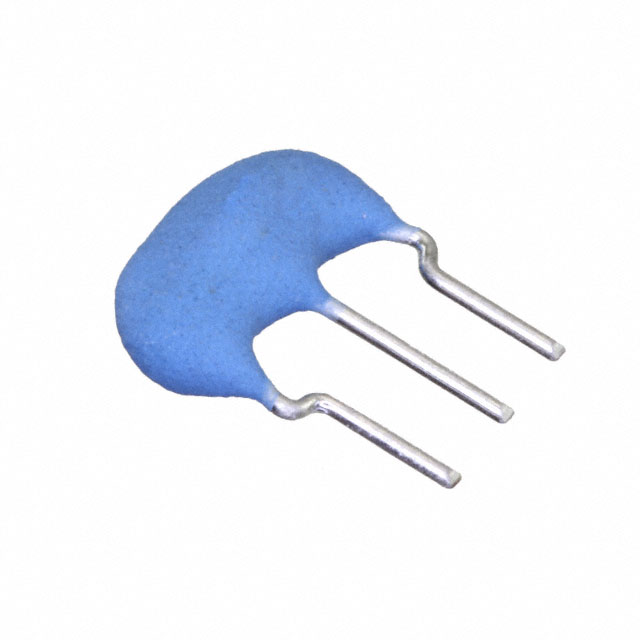

| Part Number | CSTLS7M00G56-B0 | CSTLS8M00G56-B0 | CSTLS4M00G56-B0 | CSTLS5M00G56-B0 | CSTLS6M00G56-B0 | CSTLS7M00G53-B0 | CSTLS7M00G56-A0 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | - | Ceramic | Ceramic | - | Ceramic | - | - |
| Frequency | - | 8 MHz | 4 MHz | - | 6 MHz | - | - |
| Frequency Stability | - | -0.4, +0.2% | -0.4, +0.2% | - | -0.4, +0.2% | - | - |
| Frequency Tolerance | - | ±0.5% | ±0.5% | - | ±0.5% | - | - |
| Features | - | Built in Capacitor | Built in Capacitor | - | Built in Capacitor | - | - |
| Capacitance | - | 47 pF | 47 pF | - | 47 pF | - | - |
| Impedance | - | 25 Ohms | 30 Ohms | - | - | - | - |
| Operating Temperature | - | -20°C ~ 80°C | -20°C ~ 80°C | - | -20°C ~ 80°C | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch |
| Size / Dimension | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.315" L x 0.118" W (8.00mm x 3.00mm) |
| Height | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
