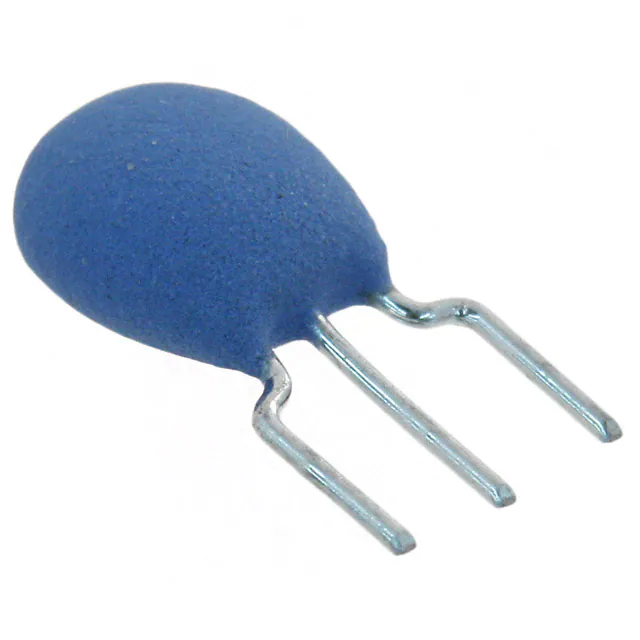

| Part Number | CSTLS16M5X53-A0 | CSTLS16M5X53-B0 | CSTLS16M0X53-A0 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Ceramic | Ceramic | Ceramic |
| Frequency | 16.5 MHz | 16.5 MHz | 16 MHz |
| Frequency Stability | ±0.2% | ±0.2% | ±0.2% |
| Frequency Tolerance | ±0.5% | ±0.5% | ±0.5% |
| Features | Built in Capacitor | Built in Capacitor | Built in Capacitor |
| Capacitance | 15 pF | 15 pF | 15 pF |
| Impedance | 50 Ohms | 50 Ohms | 50 Ohms |
| Operating Temperature | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch | Radial - 3 Lead, 2.50mm Pitch |
| Size / Dimension | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.217" L x 0.118" W (5.50mm x 3.00mm) |
| Height | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.256" (6.50mm) |
