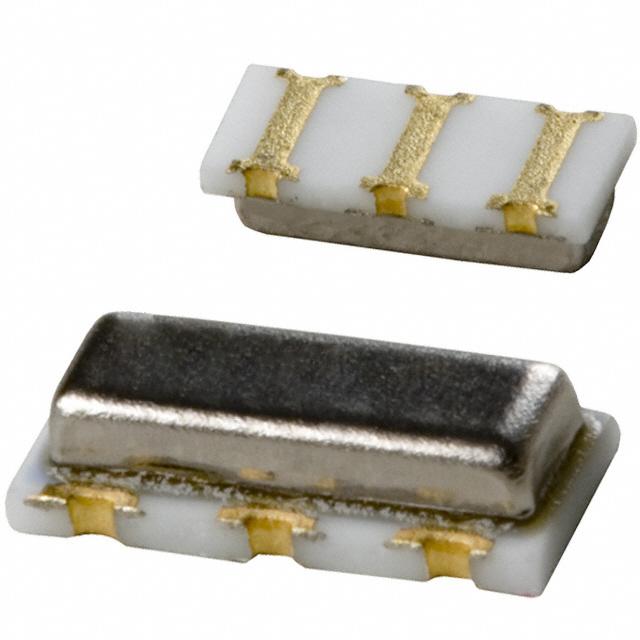

| Part Number | CSTCR4M00G53A-R0 | CSTCR4M00G53Z-R0 | CSTCR4M00G53U-R0 | CSTCR4M00G55A-R0 | CSTCR4M00G53-R0 |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Active | Active | Obsolete | Active |
| Type | - | Ceramic | - | - | Ceramic |
| Frequency | - | 4 MHz | - | - | 4 MHz |
| Frequency Stability | - | ±0.2% | - | - | ±0.2% |
| Frequency Tolerance | - | ±0.5% | - | - | ±0.5% |
| Features | - | Built in Capacitor | - | - | Built in Capacitor |
| Capacitance | - | 15 pF | - | - | 15 pF |
| Impedance | - | 60 Ohms | - | - | 60 Ohms |
| Operating Temperature | - | -40°C ~ 125°C | - | - | -20°C ~ 80°C |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount |
| Package / Case | 3-SMD, Non-Standard | 3-SMD, Non-Standard | - | 3-SMD, Non-Standard | 3-SMD, Non-Standard |
| Size / Dimension | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.177" L x 0.079" W (4.50mm x 2.00mm) |
| Height | 0.047" (1.19mm) | 0.047" (1.19mm) | - | 0.047" (1.19mm) | 0.047" (1.19mm) |
