Please send RFQ , we will respond immediately.

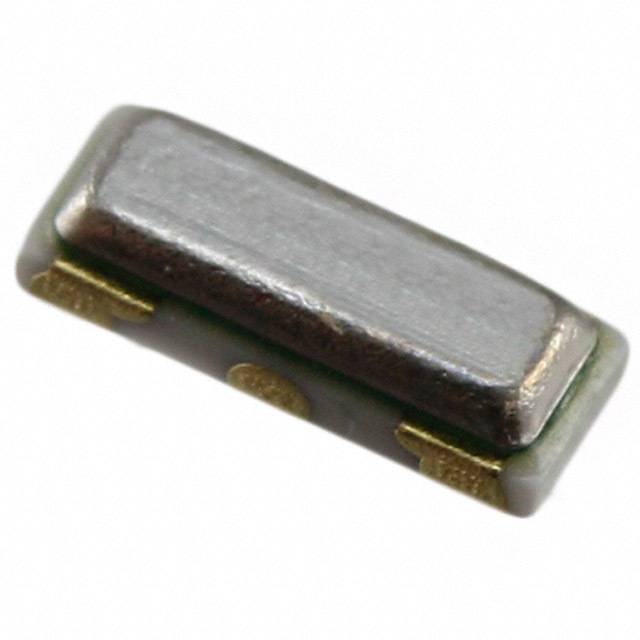

| Part Number | CSTCE8M00G52-R0 | CSTCE8M00G55-R0 | CSTCE8M00G52Z-R0 | CSTCE8M00G52A-R0 |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | Ceramic | Ceramic |
| Frequency | 8 MHz | 8 MHz | 8 MHz | 8 MHz |
| Frequency Stability | ±0.2% | ±0.2% | ±0.2% | ±0.2% |
| Frequency Tolerance | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Features | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor |
| Capacitance | 10 pF | 33 pF | 10 pF | 10 pF |
| Impedance | - | - | 40 Ohms | - |
| Operating Temperature | -20°C ~ 80°C | -20°C ~ 80°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 3-SMD, Non-Standard | 1206 (3216 Metric) | 3-SMD, Non-Standard |
| Size / Dimension | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) |
| Height | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
