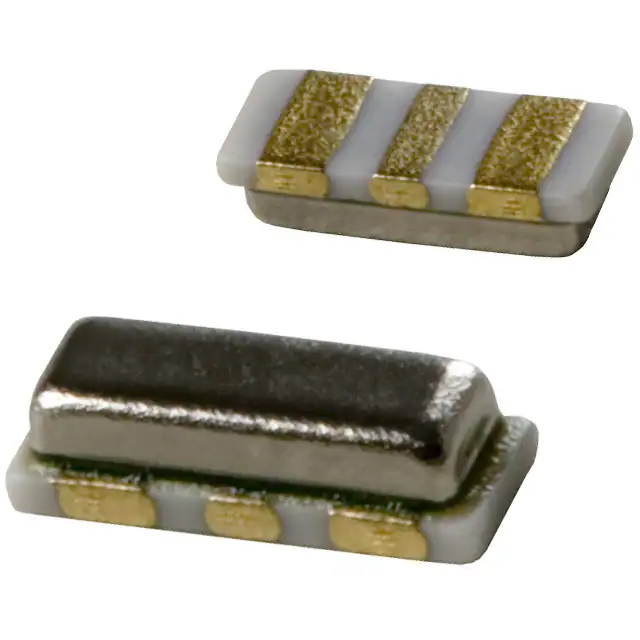

| Part Number | CSTCE16M0VH3L99-R0 | CSTCE16M0V13L99-R0 | CSTCE16M0VH3C99-R0 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | Ceramic |
| Frequency | 16 MHz | 16 MHz | 16 MHz |
| Frequency Stability | ±0.08% | ±0.08% | ±0.15% |
| Frequency Tolerance | ±0.07% | ±0.1% | ±0.3% |
| Features | Built in Capacitor | Built in Capacitor | Built in Capacitor |
| Capacitance | 15 pF | 15 pF | 15 pF |
| Impedance | - | - | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard |
| Size / Dimension | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) |
| Height | 0.039" (1.00mm) | 0.031" (0.79mm) | 0.039" (1.00mm) |
