Please send RFQ , we will respond immediately.

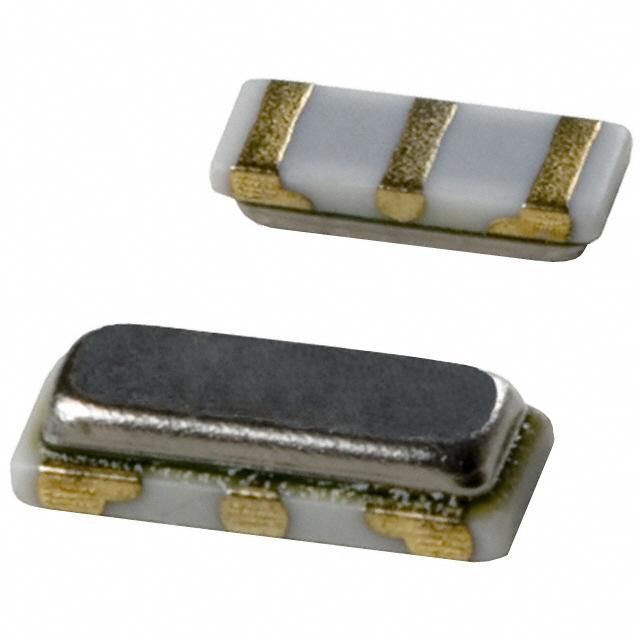

| Part Number | CSTCE10M0G52-R0 | CSTCE10M0G55-R0 | CSTCE11M0G52-R0 | CSTCE12M0G52-R0 | CSTCE10M0G52A-R0 | CSTCE10M0G52Z-R0 |
|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | - | Ceramic | Ceramic | Ceramic |
| Frequency | 10 MHz | 10 MHz | - | 12 MHz | 10 MHz | 10 MHz |
| Frequency Stability | ±0.2% | ±0.2% | - | ±0.2% | ±0.2% | ±0.2% |
| Frequency Tolerance | ±0.5% | ±0.5% | - | ±0.5% | ±0.5% | ±0.5% |
| Features | Built in Capacitor | Built in Capacitor | - | Built in Capacitor | Built in Capacitor | Built in Capacitor |
| Capacitance | 10 pF | 33 pF | - | 10 pF | 10 pF | 10 pF |
| Impedance | 40 Ohms | - | - | - | - | 40 Ohms |
| Operating Temperature | -20°C ~ 80°C | -20°C ~ 80°C | - | -20°C ~ 80°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard |
| Size / Dimension | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.126" L x 0.051" W (3.20mm x 1.30mm) |
| Height | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.028" (0.70mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
