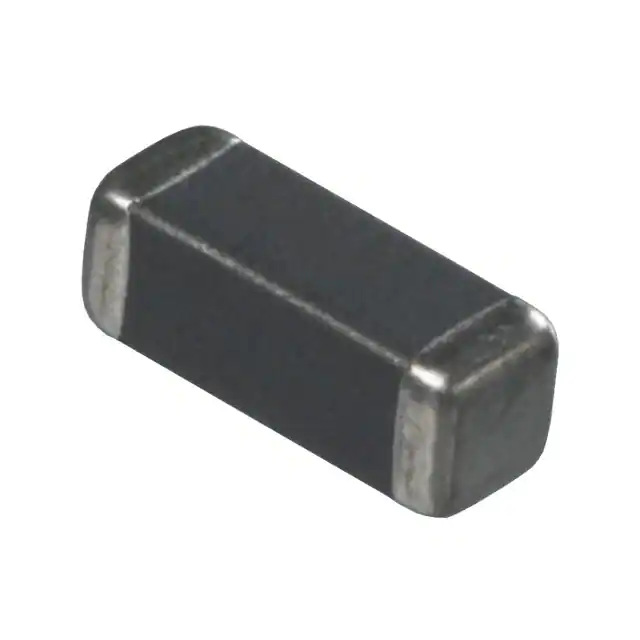

| Part Number | BLM41PG600SZ1L | BLM41PG600SH1L | BLM41PG600SN1L |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Filter Type | Power Line | Power Line | Power Line |
| Number of Lines | 1 | 1 | 1 |
| Impedance @ Frequency | 60 Ohms @ 100 MHz | 60 Ohms @ 100 MHz | 60 Ohms @ 100 MHz |
| Current Rating (Max) | 6A | 6A | 6A |
| DC Resistance (DCR) (Max) | 9mOhm | 9mOhm | 9mOhm |
| Ratings | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 1806 (4516 Metric) | 1806 (4516 Metric) | 1806 (4516 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Size / Dimension | 0.177" L x 0.063" W (4.50mm x 1.60mm) | 0.177" L x 0.063" W (4.50mm x 1.60mm) | 0.177" L x 0.063" W (4.50mm x 1.60mm) |
| Features | - | - | - |
