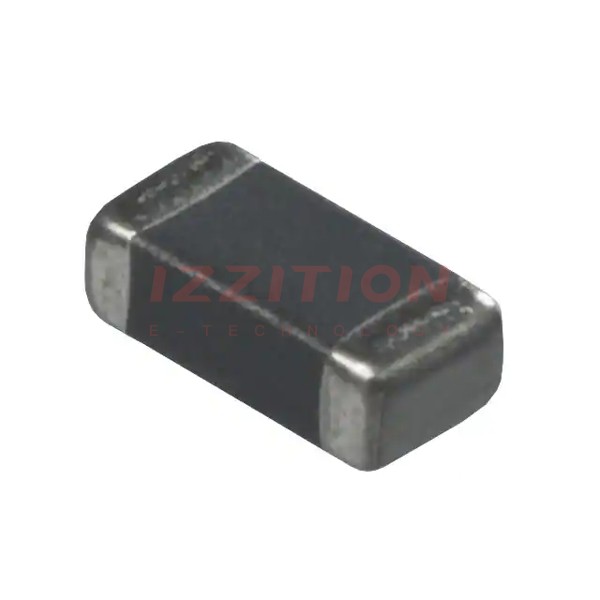

| Part Number | BLM31PG391SZ1L | BLM31PG391SH1L | BLM31PG391SN1L |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Filter Type | Power Line | Power Line | Power Line |
| Number of Lines | 1 | 1 | 1 |
| Impedance @ Frequency | 390 Ohms @ 100 MHz | 390 Ohms @ 100 MHz | 390 Ohms @ 100 MHz |
| Current Rating (Max) | 2A | 2A | 2A |
| DC Resistance (DCR) (Max) | 50mOhm | 50mOhm | 50mOhm |
| Ratings | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.013" (0.33mm) | 0.051" (1.30mm) | 0.051" (1.30mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Features | - | - | - |
