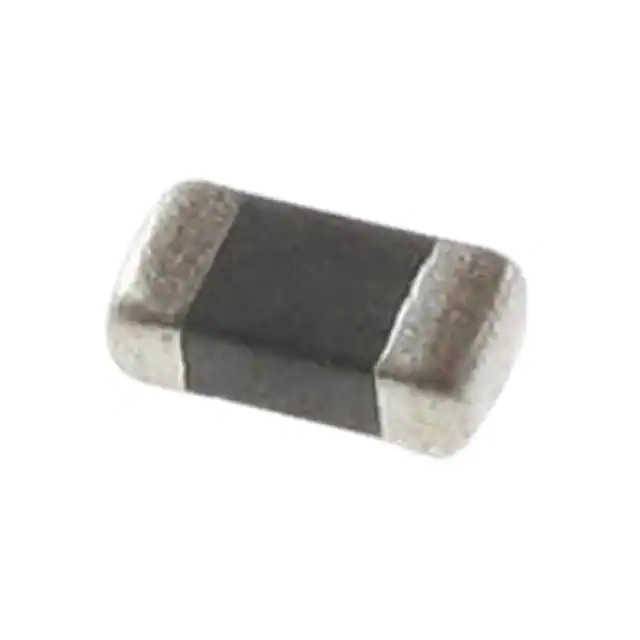

| Part Number | BLM31KN601SZ1L | BLM31KN801SZ1L | BLM31KN601SH1L | BLM31KN601SN1L | BLM31KN601SZ1K |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Discontinued at Digi-Key |
| Filter Type | Power Line | Power Line | Power Line | Power Line | Power Line |
| Number of Lines | 1 | 1 | 1 | 1 | - |
| Impedance @ Frequency | 600 Ohms @ 100 MHz | 800 Ohms @ 100 MHz | 600 Ohms @ 100 MHz | 600 Ohms @ 100 MHz | 600 Ohms @ 100 MHz |
| Current Rating (Max) | 2.9A | 2.5A | 2.9A | 2.9A | 2.9A |
| DC Resistance (DCR) (Max) | 38mOhm | 50mOhm | 38mOhm | 38mOhm | 38mOhm |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Features | - | - | - | - | - |
