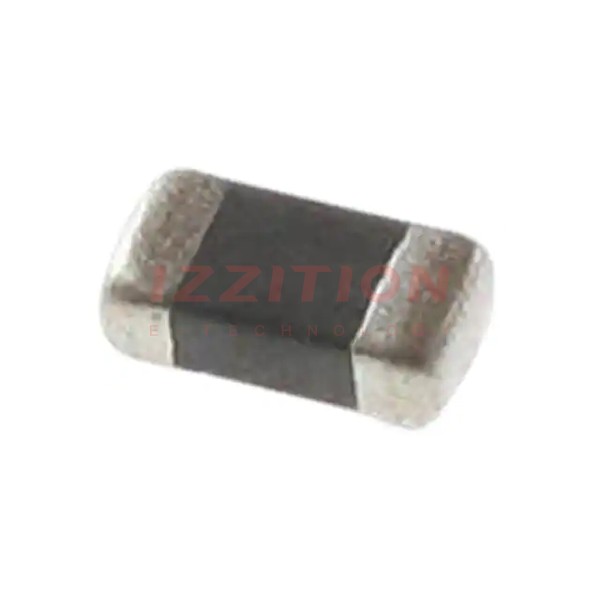

| Part Number | BLM31KN121SZ1L | BLM31KN121SH1L | BLM31KN121SN1L | BLM31KN121SZ1K |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Discontinued at Digi-Key |
| Filter Type | Power Line | Power Line | Power Line | Power Line |
| Number of Lines | 1 | 1 | 1 | - |
| Impedance @ Frequency | 120 Ohms @ 100 MHz | 120 Ohms @ 100 MHz | 120 Ohms @ 100 MHz | 120 Ohms @ 100 MHz |
| Current Rating (Max) | 6A | 6A | 6A | 6A |
| DC Resistance (DCR) (Max) | 9mOhm | 20mOhm | 9mOhm | 9mOhm |
| Ratings | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Features | - | - | - | - |
