Please send RFQ , we will respond immediately.

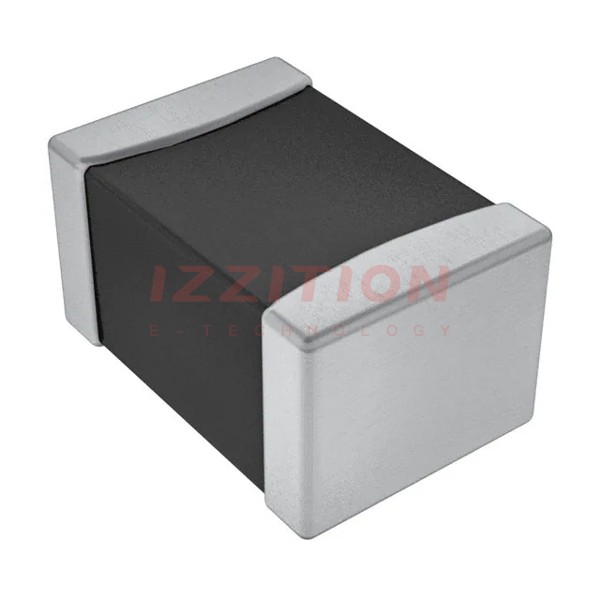

| Part Number | BLM21SN300SZ1D | BLM21SN300SH1D | BLM21SN300SN1D |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Filter Type | Power Line | Power Line | Power Line |
| Number of Lines | 1 | 1 | 1 |
| Impedance @ Frequency | 30 Ohms @ 100 MHz | 30 Ohms @ 100 MHz | 30 Ohms @ 100 MHz |
| Current Rating (Max) | 8.5A | 8.5A | 8.5A |
| DC Resistance (DCR) (Max) | 4mOhm | 4mOhm | 4mOhm |
| Ratings | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.041" (1.05mm) | 0.041" (1.05mm) | 0.041" (1.05mm) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Features | - | - | - |
