Please send RFQ , we will respond immediately.

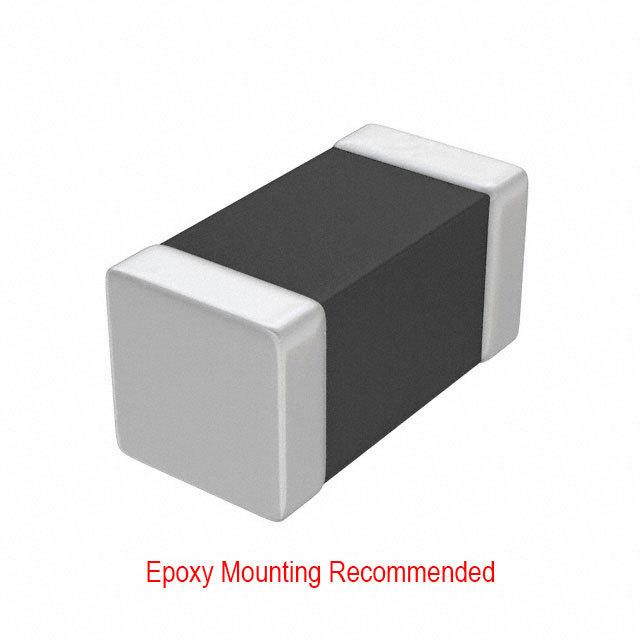

| Part Number | BLM18KG700WH1D | BLM18KG300WH1D | BLM18KG700JH1D | BLM18KG700TH1D |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Filter Type | Power Line | Power Line | Power Line | Power Line |
| Number of Lines | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 70 Ohms @ 100 MHz | 30 Ohms @ 100 MHz | 70 Ohms @ 100 MHz | 70 Ohms @ 100 MHz |
| Current Rating (Max) | 1.65A | 1.85A | 2.2A | 3.5A |
| DC Resistance (DCR) (Max) | 47mOhm | 35mOhm | 22mOhm | 22mOhm |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Mounting Type | Surface Mount, Epoxy | Surface Mount, Epoxy | Surface Mount | Surface Mount |
| Height (Max) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Features | - | - | - | - |
