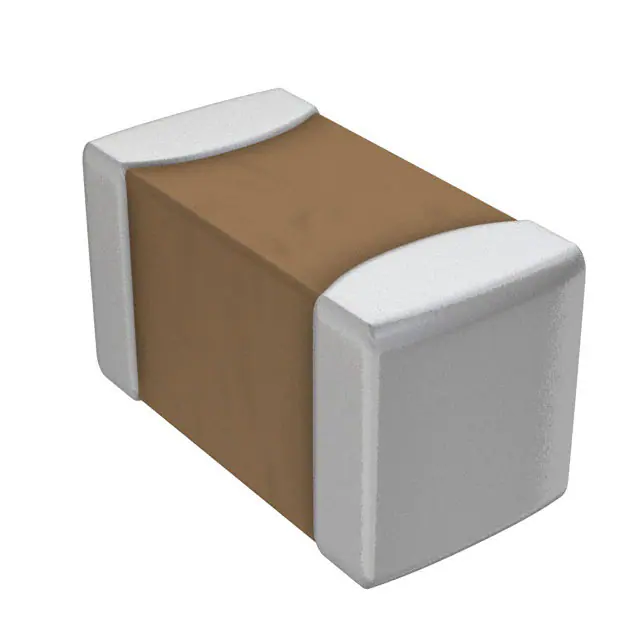

| Part Number | BLM15HB221SH1D | BLM15HB221SN1D | BLM15HB221SZ1D | BLM15BB221SH1D | BLM15HB121SH1D |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Filter Type | Signal Line | Signal Line | - | Differential Mode - Single | Signal Line |
| Number of Lines | 1 | 1 | - | 1 | 1 |
| Impedance @ Frequency | 220 Ohms @ 100 MHz | 220 Ohms @ 100 MHz | - | 220 Ohms @ 100 MHz | 120 Ohms @ 100 MHz |
| Current Rating (Max) | 250mA | 250mA | - | - | 300mA |
| DC Resistance (DCR) (Max) | 1Ohm | 1Ohm | - | - | 700mOhm |
| Ratings | AEC-Q200 | - | - | - | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | - | - | -55°C ~ 125°C |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | - | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount |
| Height (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | - | 0.022" (0.55mm) | 0.022" (0.55mm) |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Features | - | - | - | - | - |
