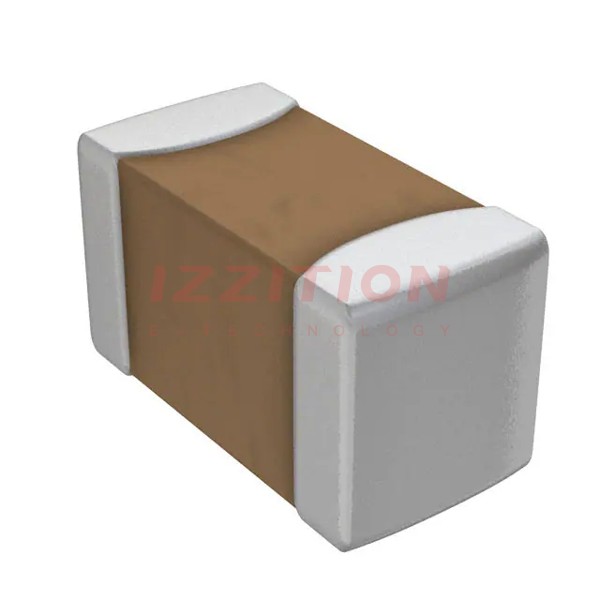

| Part Number | BLM15BX601SZ1D | BLM15PX601SZ1D | BLM15AX601SZ1D | BLM15BD601SZ1D | BLM15BX601SN1D |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Filter Type | - | Power Line | Power, Signal Line | - | Signal Line |
| Number of Lines | - | 1 | 1 | - | 1 |
| Impedance @ Frequency | - | 600 Ohms @ 100 MHz | 600 Ohms @ 100 MHz | - | 600 Ohms @ 100 MHz |
| Current Rating (Max) | - | 900mA | 500mA | - | 350mA |
| DC Resistance (DCR) (Max) | - | 230mOhm | 340mOhm | - | 460mOhm |
| Ratings | - | AEC-Q200 | AEC-Q200 | - | - |
| Operating Temperature | - | -55°C ~ 125°C | -55°C ~ 125°C | - | -55°C ~ 125°C |
| Package / Case | - | 0402 (1005 Metric) | 0402 (1005 Metric) | - | 0402 (1005 Metric) |
| Mounting Type | - | Surface Mount | Surface Mount | - | Surface Mount |
| Height (Max) | - | 0.022" (0.55mm) | 0.022" (0.55mm) | - | 0.022" (0.55mm) |
| Size / Dimension | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Features | - | - | - | - | - |
