Please send RFQ , we will respond immediately.

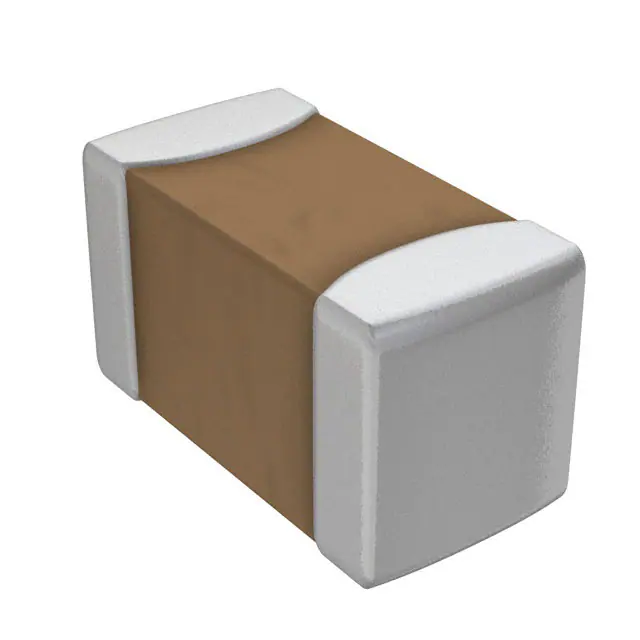

| Part Number | BLM15AG700SZ1D | BLM15AX700SZ1D | BLM15AG100SZ1D | BLM15AG700SH1D | BLM15AG700SN1D |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active |
| Filter Type | - | - | - | - | - |
| Number of Lines | 1 | - | - | 1 | 1 |
| Impedance @ Frequency | - | - | - | 70 Ohms @ 100 MHz | 70 Ohms @ 100 MHz |
| Current Rating (Max) | 600mA | - | - | 500mA | 600mA |
| DC Resistance (DCR) (Max) | 150mOhm | - | - | 150mOhm | 150mOhm |
| Ratings | AEC-Q200 | - | - | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | - | - | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 0402 (1005 Metric) | - | - | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Mounting Type | Surface Mount | - | - | Surface Mount | Surface Mount |
| Height (Max) | 0.022" (0.55mm) | - | - | 0.022" (0.55mm) | 0.022" (0.55mm) |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Features | - | - | - | - | - |
