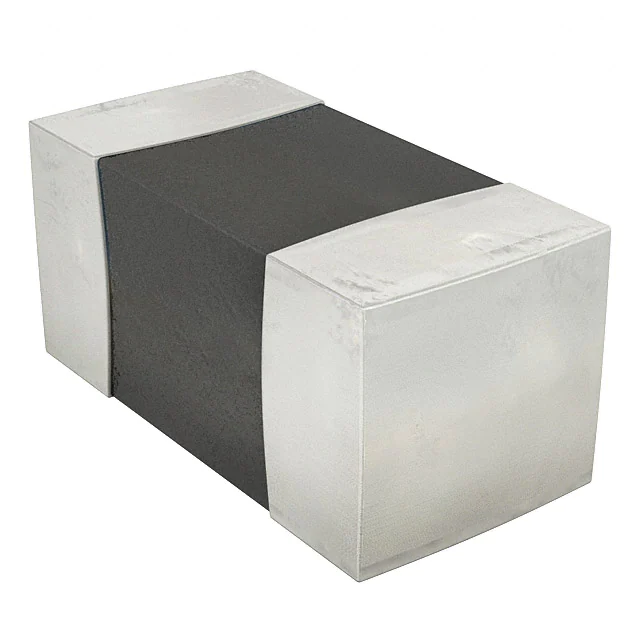

| Part Number | BLM15AG121SN1D | BLM15AG221SN1D | BLM15EG121SN1D | BLM15AX121SN1D | BLM15AG121SZ1D | BLM15AG121SH1D |
|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Not For New Designs | Active | Active | Active |
| Filter Type | - | - | - | - | - | - |
| Number of Lines | 1 | 1 | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 120 Ohms @ 100 MHz | 220 Ohms @ 100 MHz | 120 Ohms @ 100 MHz | 120 Ohms @ 100 MHz | - | 120 Ohms @ 100 MHz |
| Current Rating (Max) | 550mA | 450mA | 1.5A | 700mA | 550mA | 500mA |
| DC Resistance (DCR) (Max) | 190mOhm | 290mOhm | 95mOhm | 130mOhm | 190mOhm | 250mOhm |
| Ratings | - | - | - | - | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Features | - | - | - | - | - | - |
