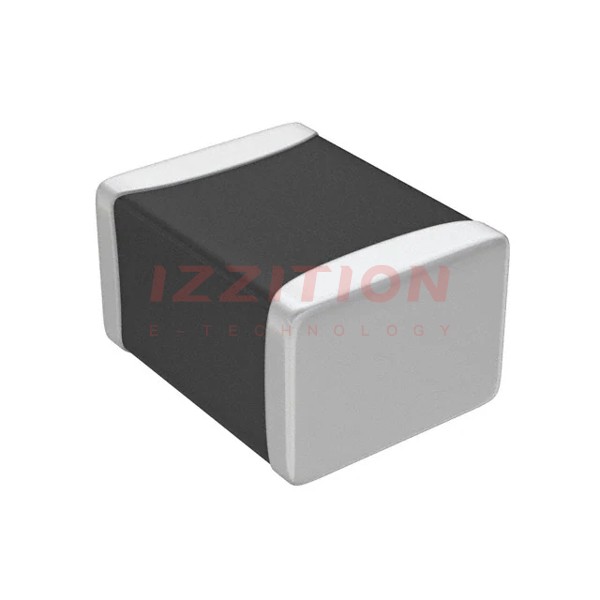

| Part Number | BLE32PN300SZ1L | BLE32PN300SH1L | BLE32PN300SN1L |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Filter Type | Power Line | Power Line | Power Line |
| Number of Lines | 1 | 1 | 1 |
| Impedance @ Frequency | 30 Ohms @ 100 MHz | 30 Ohms @ 100 MHz | 30 Ohms @ 100 MHz |
| Current Rating (Max) | 10A | 10A | 10A |
| DC Resistance (DCR) (Max) | 1.6mOhm | 1.6mOhm | 1.6mOhm |
| Ratings | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Features | - | - | - |
