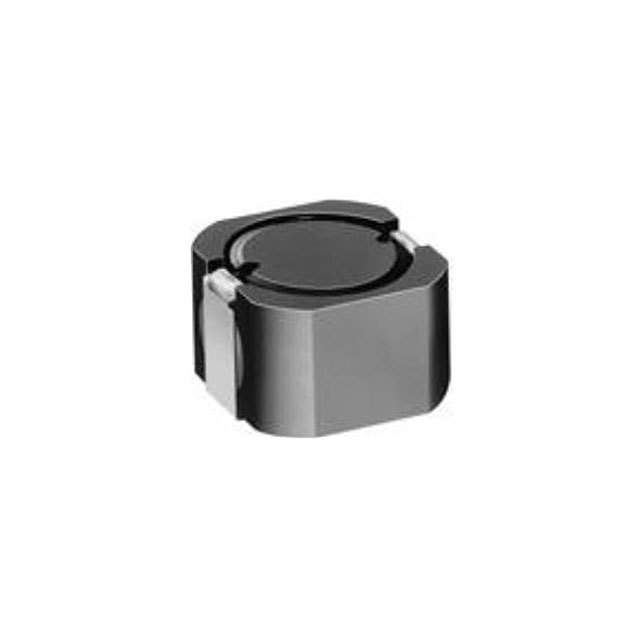

| Part Number | #B966AS-8R2N=P3 | #B966AS-1R2N=P3 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 8.2 µH | 1.2 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 4.6 A | 7.2 A |
| Current - Saturation (Isat) | 4.8A | 12A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 24mOhm Max | 11mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) |
| Height - Seated (Max) | 0.268" (6.80mm) | 0.268" (6.80mm) |
