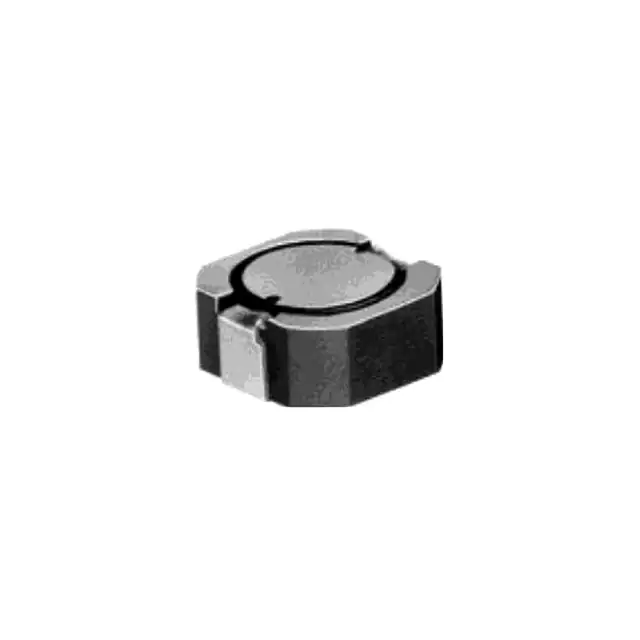

| Part Number | #B953AS-681M=P3 | #B953AS-181M=P3 | #B953AS-680M=P3 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 680 µH | 180 µH | 68 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 580 mA | 1.1 A | 1.7 A |
| Current - Saturation (Isat) | 550mA | 1.1A | 1.7A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.12Ohm Max | 290mOhm Max | 120mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
| Height - Seated (Max) | 0.268" (6.80mm) | 0.268" (6.80mm) | 0.268" (6.80mm) |
