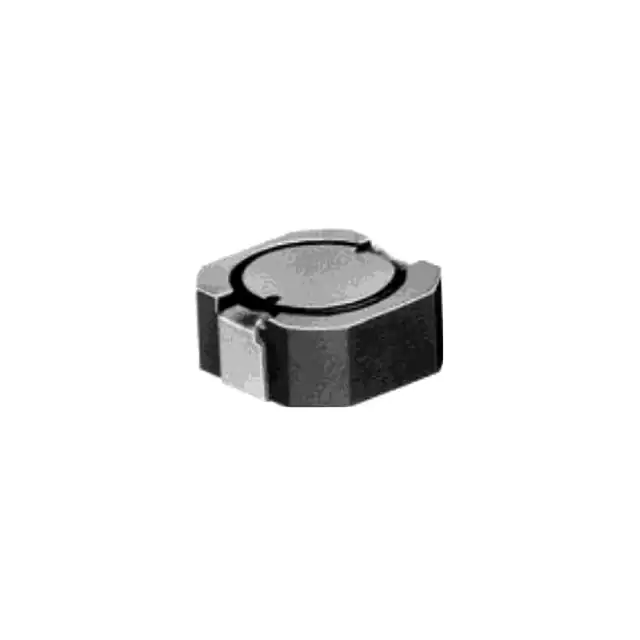

| Part Number | #B953AS-471M=P3 | #B953AS-271M=P3 | #B953AS-470M=P3 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 470 µH | 270 µH | 47 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 700 mA | 920 mA | 2.1 A |
| Current - Saturation (Isat) | 670mA | 930mA | 2.4A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 705mOhm Max | 415mOhm Max | 82mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
| Height - Seated (Max) | 0.268" (6.80mm) | 0.268" (6.80mm) | 0.268" (6.80mm) |
