Please send RFQ , we will respond immediately.

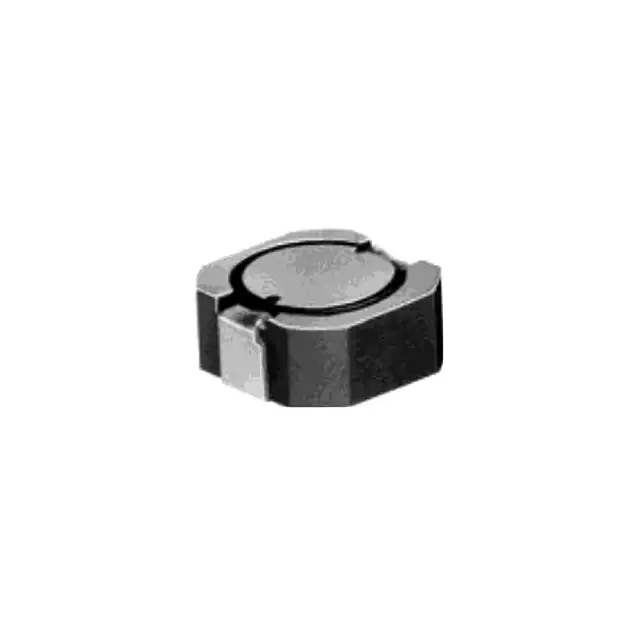

| Part Number | #B953AS-180M=P3 | #B953AS-181M=P3 | #B953AS-680M=P3 | #B953AS-100M=P3 | #B953AS-120M=P3 | #B953AS-150M=P3 |
|---|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 18 µH | 180 µH | 68 µH | 10 µH | 12 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.2 A | 1.1 A | 1.7 A | 4.4 A | 4 A | 3.6 A |
| Current - Saturation (Isat) | 4.1A | 1.1A | 1.7A | 5.5A | 5A | 4.5A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 40mOhm Max | 290mOhm Max | 120mOhm Max | 23mOhm Max | 27mOhm Max | 32mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
| Height - Seated (Max) | 0.268" (6.80mm) | 0.268" (6.80mm) | 0.268" (6.80mm) | 0.268" (6.80mm) | 0.268" (6.80mm) | 0.268" (6.80mm) |
