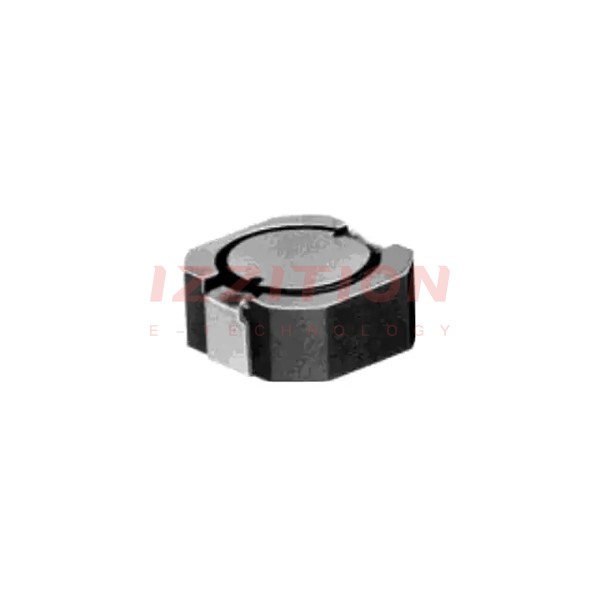

| Part Number | #B952AS-H-330M=P3 | #B952AS-H-390M=P3 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 33 µH | 39 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.6 A | 1.4 A |
| Current - Saturation (Isat) | 2A | 1.8A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 125mOhm Max | 150mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) |
| Height - Seated (Max) | 0.189" (4.80mm) | 0.189" (4.80mm) |
