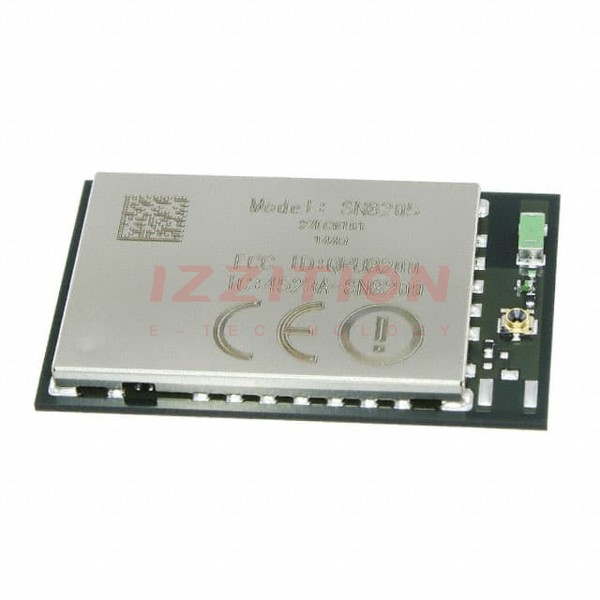

| Part Number | 88-00158-00 | 88-00158-02 | 88-00150-00 | 88-00151-00 | 88-00153-00 |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| RF Family/Standard | WiFi | WiFi | Bluetooth | WiFi | WiFi |
| Protocol | 802.11b/g/n | 802.11b/g/n | Bluetooth v2.0 | 802.11b/g/n | 802.11b/g/n |
| Modulation | CCK, DSSS | CCK, DSSS | - | CCK, DSSS, OFDM | CCK, DSSS, OFDM |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 65Mbps | 65Mbps | 1Mbps | 65Mbps | 65Mbps |
| Power - Output | 18dBm | 18dBm | 18dBm | 18dBm | 18.5dBm |
| Sensitivity | -96dBm | -96dBm | -92dBm | -96dBm | -96dBm |
| Serial Interfaces | I²C, I²S, SPI, UART | I²C, I²S, SPI, UART | - | I²C, I²S, SPI, UART | JTAG, SDIO, SPI |
| Antenna Type | Integrated, Chip | Antenna Not Included, U.FL | Integrated, Trace | Integrated, Chip | Integrated, Chip |
| Utilized IC / Part | BCM43362 | BCM43362 | - | BCM43362 | BCM43362 |
| Memory Size | 1MB Flash, 128kB RAM | 1MB Flash, 128kB RAM | - | 768kB Flash, 96kB RAM | - |
| Voltage - Supply | 2V ~ 3.6V | 2V ~ 3.6V | 2.2V ~ 3.3V | 2V ~ 3.6V | 3V ~ 4V |
| Current - Receiving | 110mA | 110mA | 50mA | 110mA | 70mA |
| Current - Transmitting | 280mA ~ 370mA | 280mA ~ 370mA | 165mA | 280mA ~ 370mA | 225mA ~ 315mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | Module | Module | 32-SMD Module | Module | Module |
