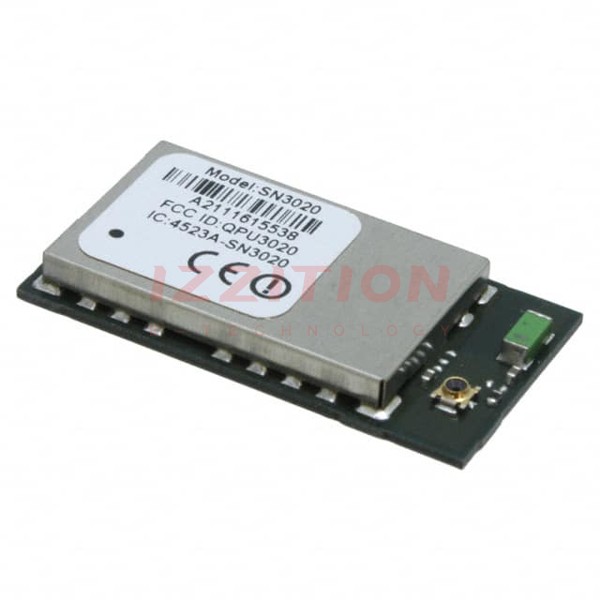

| Part Number | 88-00143-00 | 88-00144-00 | 88-00153-00 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| RF Family/Standard | 802.15.4 | 802.15.4 | WiFi |
| Protocol | Zigbee® | Zigbee® | 802.11b/g/n |
| Modulation | - | - | CCK, DSSS, OFDM |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | - | 1Mbps | 65Mbps |
| Power - Output | 20dBm | 20dBm | 18.5dBm |
| Sensitivity | -103dBm | -103dBm | -96dBm |
| Serial Interfaces | - | - | JTAG, SDIO, SPI |
| Antenna Type | Integrated, Chip + U.FL | Integrated, Trace | Integrated, Chip |
| Utilized IC / Part | EM357 | EM357 | BCM43362 |
| Memory Size | 1MB Flash | 1MB Flash | - |
| Voltage - Supply | 2.4V ~ 3.4V | 2.4V ~ 3.4V | 3V ~ 4V |
| Current - Receiving | 35mA | 35mA | 70mA |
| Current - Transmitting | 175mA | 160mA | 225mA ~ 315mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 44-SMD Module | 44-SMD Module | Module |
