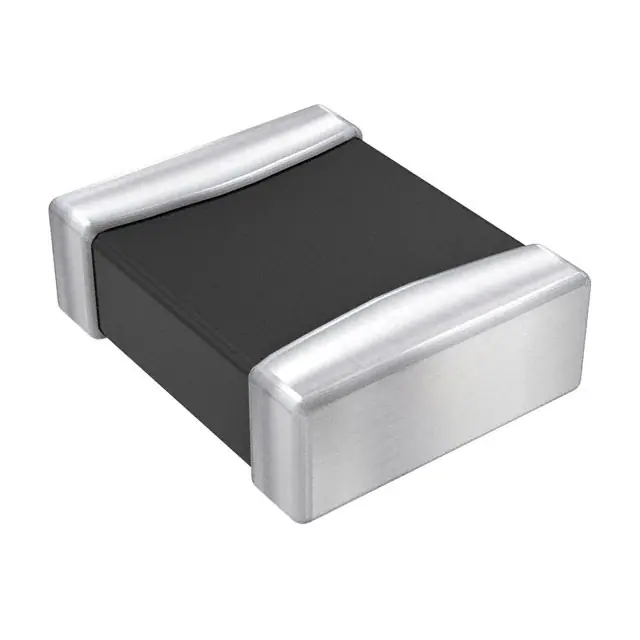

| Part Number | 1276AS-H-2R2M=P2 | 1286AS-H-2R2M=P2 | 1277AS-H-2R2M=P2 |
|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 2.2 µH | 2.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.6 A | 1.6 A | 2.1 A |
| Current - Saturation (Isat) | 2.2A | - | 2.6A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 118mOhm Max | 192mOhm Max | 84mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 0806 (2016 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | - | 0806 (2016 Metric) | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
