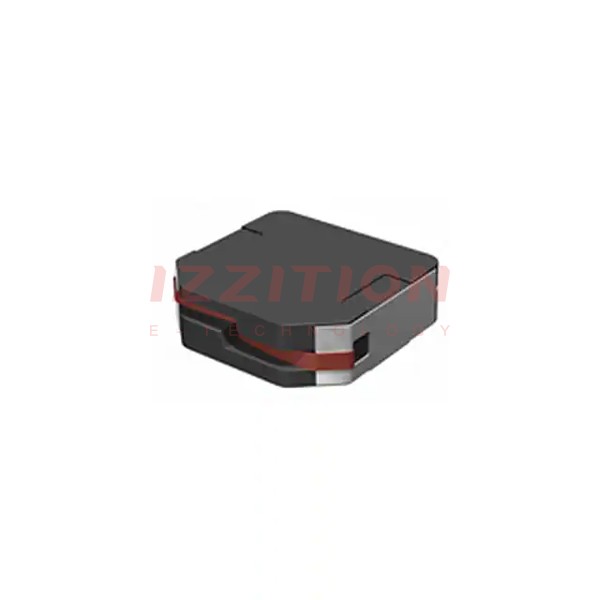

| Part Number | 1235AS-H-6R8M=P3 | 1234AS-H-6R8M=P3 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.9 A | 1.4 A |
| Current - Saturation (Isat) | 1.7A | 1.2A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 106mOhm Max | 156mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.185" L x 0.177" W (4.70mm x 4.50mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.055" (1.40mm) |
