Please send RFQ , we will respond immediately.

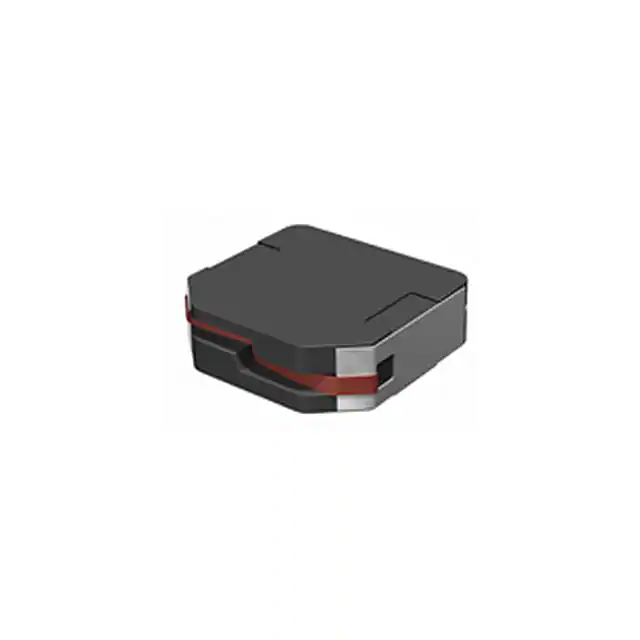

| Part Number | 1234AS-H-100M=P3 | 1235AS-H-100M=P3 | 1234AS-H-120M=P3 | 1234AS-H-150M=P3 | 1231AS-H-100M=P3 |
|---|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 10 µH | 12 µH | 15 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.25 A | 1.7 A | 1.1 A | 1 A | 1.25 A |
| Current - Saturation (Isat) | 1A | 1.3A | 900mA | 800mA | 900mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 192mOhm Max | 132mOhm Max | 228mOhm Max | 276mOhm Max | 174mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.146" L x 0.154" W (3.70mm x 3.90mm) |
| Height - Seated (Max) | 0.055" (1.40mm) | 0.071" (1.80mm) | 0.055" (1.40mm) | 0.055" (1.40mm) | 0.071" (1.80mm) |
