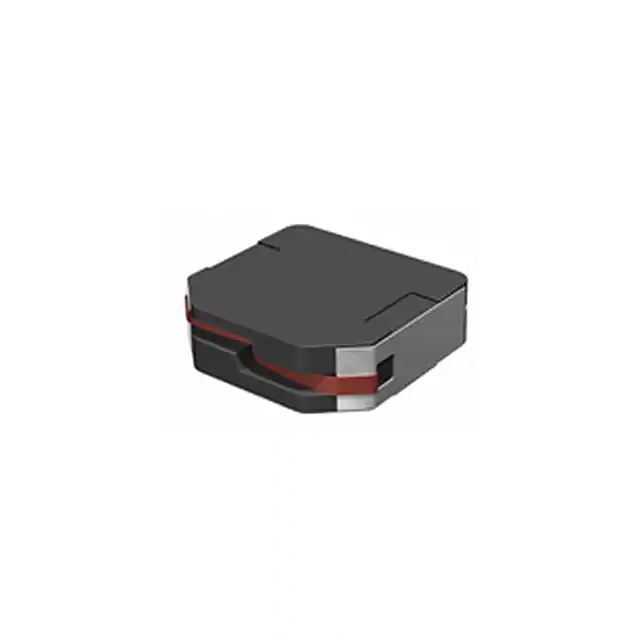

| Part Number | 1231AS-H-1R5N=P3 | 1231AS-H-1R2N=P3 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1.2 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 2.7 A | 2.9 A |
| Current - Saturation (Isat) | 2.1A | 2.4A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 42mOhm Max | 36mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.146" L x 0.154" W (3.70mm x 3.90mm) | 0.146" L x 0.154" W (3.70mm x 3.90mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) |
