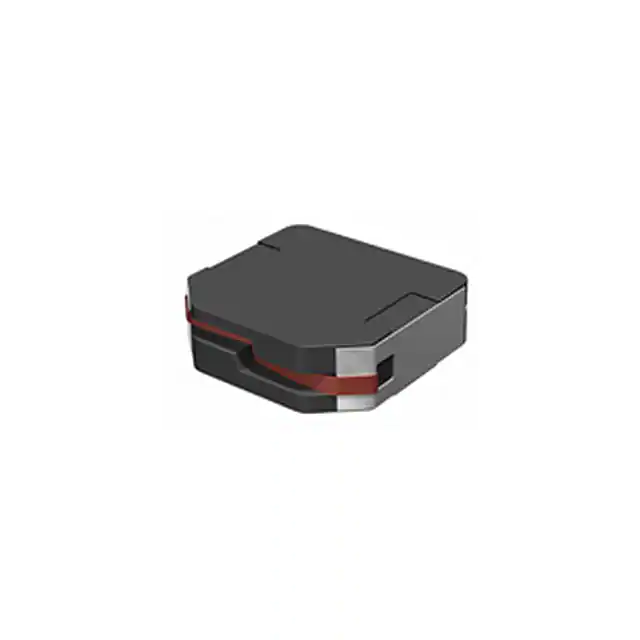

| Part Number | 1229AS-H-2R0M=P3 | 1229AS-H-220M=P3 |
|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 2 µH | 22 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.7 A | 530 mA |
| Current - Saturation (Isat) | 1.5A | 500mA |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 88mOhm Max | 672mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.146" L x 0.154" W (3.70mm x 3.90mm) | 0.146" L x 0.154" W (3.70mm x 3.90mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) |
