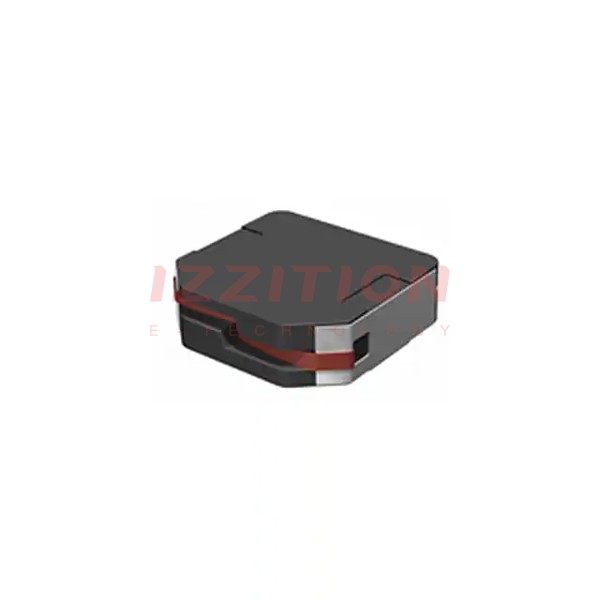

| Part Number | 1227AS-H-1R0N=P2 | 1227AS-H-1R5N=P2 | 1225AS-H-1R0N=P2 | 1226AS-H-1R0N=P2 |
|---|---|---|---|---|
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1 µH | 1.5 µH | 1 µH | 1 µH |
| Tolerance | ±30% | ±30% | ±30% | ±30% |
| Current Rating (Amps) | 3.7 A | 3.4 A | 2.7 A | 3.3 A |
| Current - Saturation (Isat) | 2.3A | 2A | 1.8A | 2.1A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 29mOhm Max | 32mOhm Max | 43mOhm Max | 32mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.126" L x 0.118" W (3.20mm x 3.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.047" (1.20mm) | 0.059" (1.50mm) |
